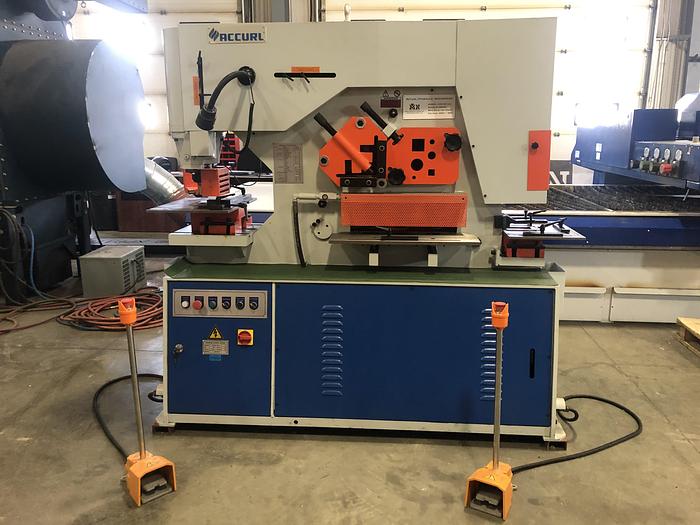

2020 Accurl 80 Ton Hydraulic Ironworker

New Accurl 80 Ton Hydraulic Ironworker

Mfg March 2020

-Punch, Notch, Bend & Shearing Functions

-Comes with 9 Sets of Round Punches and Dies

-Comes with 6" Press Brake Attachment (Multi V Bottom Die)

-Dual Operating with 2 foot Pedals (Punch & Shear at the same time)

-Limit Switches for Stroke Control

-Actuating Back Gauge Switch for Repeat Length Cutting

-Jogging Mode (For Set-ups & Aligning)

-Auto Return Mode (For Productions Runs)

-Hydraulic Hold Downs for Shear

-Shear Blades with 4 Cutting Edges

-Canadian approved electrical components

-Canadian approved safety components

Capacities (Steel):

Punching - 3/4" Thickness, 1-3/16" max dia

Flat Shearing - T&W/ Flat bar 3/4" x 12" length

Notching - 1/2" MS

Section cutting - Round 2", Square 2", Channel 5/8", I-beam 5/8"

Angle cut - 5-1/2" x 1/2"

Motor - 5.5kw / 7.38 HP

Voltage - 220V / 3Ph

Dimensions - 74" x 36" x 75"

Weight - 2300kg / 5000 lbs

Available for demo in Lethbridge, AB

1 Year Warranty on Parts

Freight, Installation, Set-up & Training Available
