2020 Accurl 125 Ton Hydraulic Ironworker

2020 Accurl 125 Ton Hydraulic Ironworker

C$33,000 (CAD)

orCall (403) 380-5047

Description

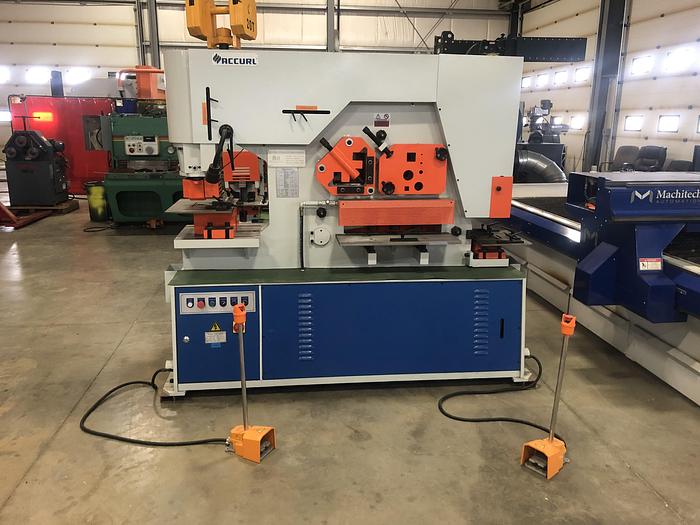

New Accurl 125 Ton Hydraulic Ironworker

Mfg March 2020


-Punch, Notch, Bend & Shearing Functions

-Comes with 9 Sets of Round Punches and Dies

-Comes with 6" Press Brake Attachment (Multi V Bottom Die)

-Dual Operating with 2 foot Pedals (Punch & Shear at the same time)

-Limit Switches for Stroke Control

-Actuating Back Gauge Switch for Repeat Length Cutting

-Jogging Mode (For Set-ups & Aligning)

-Auto Return Mode (For Productions Runs)

-Hydraulic Hold Downs for Shear

-Shear Blades with 4 Cutting Edges

-Canadian approved electrical components

-Canadian approved safety components


Capacities (Steel):


Punching - 1" Thickness, 1-3/8" max dia

Flat Shearing - T&W/ Flat bar 1 x 12"

Notching - 9/16" MS

Section cutting - Round 2-3/8", Square 2", Channel 3/4", I-beam 3/4"

Angle cut - 6" x 9/16"


Motor - 7.5KW / 10 HP

Voltage - 220V / 3Ph

Dimensions - 93" x 38" x 83"

Weight - 3800kg / 8400 lbs


In stock and connected to power for demonstration in Lethbridge, AB

Specifications

ManufacturerAccurl
Model125 Ton Hydraulic Ironworker
Year2020
ConditionNew
Serial Number20037
